AAAC all aluminum alloy conductors
cpp02
cpp02

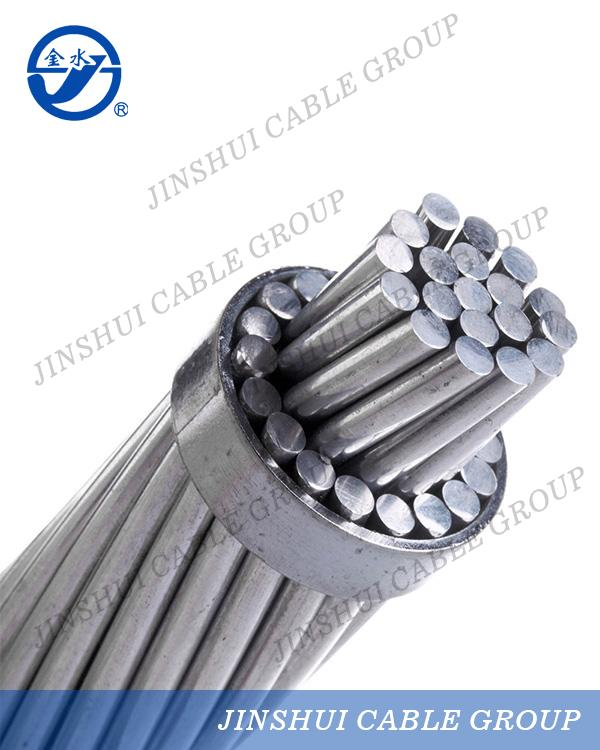

AAAC all aluminum alloy conductors

The conductor consists of aluminum magnesium-silicon alloy wires stranded in successive layers in opposite direction and the outer layer is right hand direction Z . Natural grease may be applied between the layers of AAAC except the outer layer.
  • Added time : 2014-01-15
  • Specification :
  • Standard :
  • Voltage :
Description du produit
Paramètres

  CONDUCTOR

  AAAC ALL ALUMINUM ALLOY CONDUCTORS

  Description

  The conductor consists of aluminum magnesium-silicon alloy wires stranded in successive layers in opposite direction and the outer layer is right hand direction Z . Natural grease may be applied between the layers of AAAC except the outer layer.

  Standard

  Construction as per ASTM B399,DIN 48201, BS EN 50182, IEC 61089, CSA C49.

  Application

  AAAC bare conductors are used for primay and secondary overhead power transmission lines having long spans and high resistance to corrosion .

  AAAC Technical Character Based on Standard ASTM B399



Code  name

Cross section   (mm²)

Stranding and Wires Dia (in)

Overall Dia  (mm)

Weight  (1b/1000ft)

Rated strength (kN)

Max.D.C. Resistance (Ω/km,20℃)

Akron

15.5

7/0.0661

5.04

28.52

4.92

2.159

Ames

39.2

7/0.1052

8.01

72.24

12.4

0.8547

Anaheim

78.6

7/0.1490

11.34

144.9

23.8

0.4264

Alliance

125

7/0.1878

14.31

230.2

37.8

0.2678

Butte

159

19/0.1283

16.3

291.6

46.5

0.2112

Cairo

236

19/0.1565

19.9

433.9

69.2

0.1417

Darien

284

19/0.1716

21.8

521.7

83.1

0.1181

Elgin

331

19/0.1853

23.55

608.3

97.0

0.1012

Flint

375

37/0.1415

25.13

690.8

107

0.08944

Greeley

 470

37/0.1583

28.14

864.6

135

0.07133
